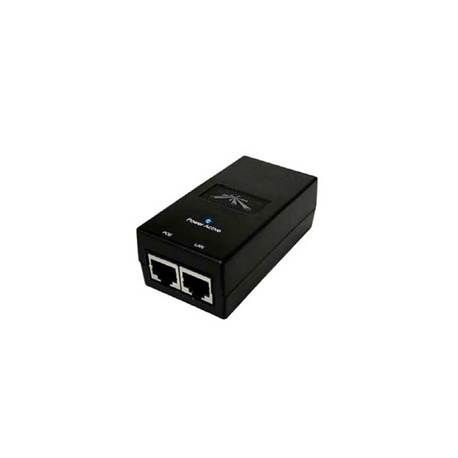

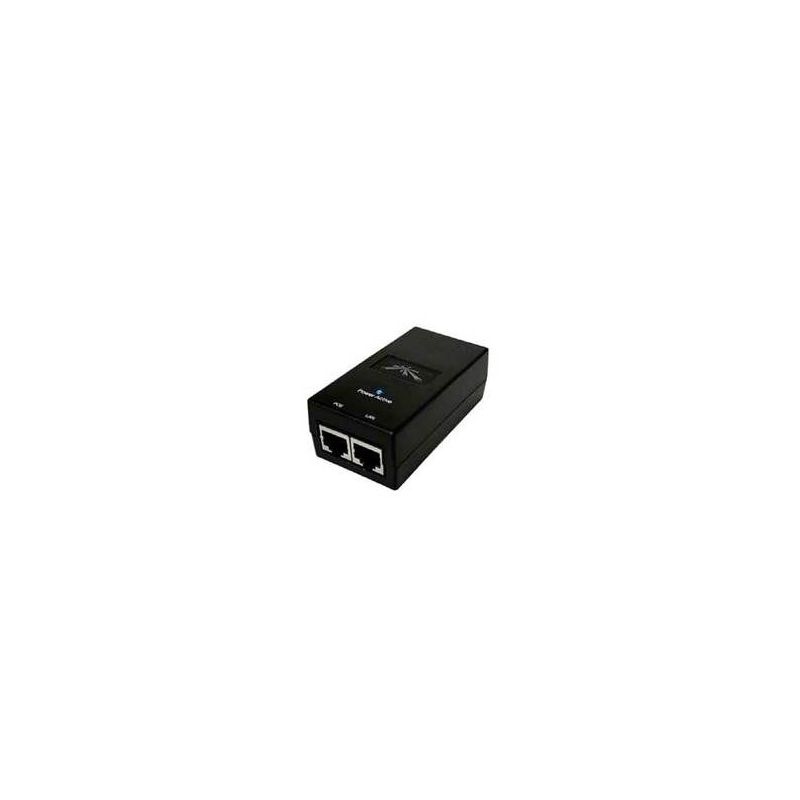

Poe-15, designed by ubiquiti, is now shipping. the poe-15 (15v, 12w)
features earth grounding/esd protection, power led, and is available in usa
(nema 5-15) and eu (cee 7/16) versions. msrp $9.
output voltage 15vdc @ 0.8a
input voltage 90-260vac @ 47-63hz
input current 0.3a @ 120vac, 0.2a @230vac
efficiency 70+%
output ripple 1% max
switching frquency 200khz
line regulation +/- 0.5%
load regulation +/- 1%
operating temperature -10c to +60 deg c
storage temperature -20c to +85 deg c
operating humidity 5% to 90% non condensing
size (l x w x h) 85 x 43 x 30 (mm)
