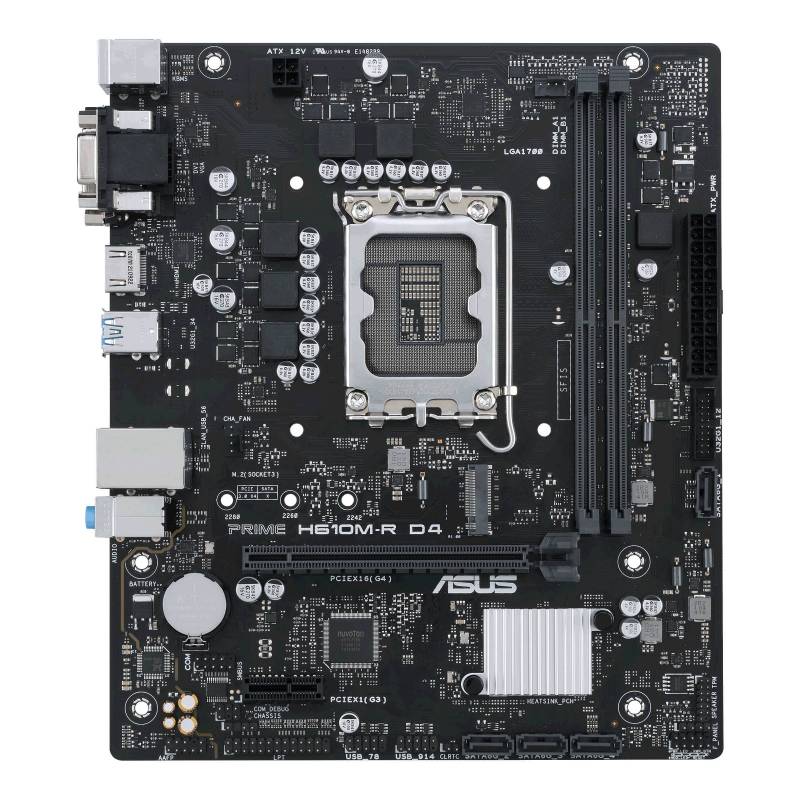

PLACA BASE ASUS INTEL PRIME H610M-R 1700

Asus prime h610m - r d4. fabricante de procesador: intel - socket de procesador: lga 1700 - procesador compatible: intel® celeron® - intel® core i3 - intel® core i5 - intel® core i7 - intel® core i9 -.... tipos
de memoria compatibles: ddr4 - sdram - memoria interna máxima: 64 gb - tipo de ranuras de memoria: dimm. interfaces de disco de almacenamiento soportados: m.2 - sata iii - tipos de unidades de
almacenamiento admitidas: hdd & ssd. máxima resolución: 3840 x 2160 pixeles. conector usb: usb tipo a

cpu intel® socket lga1700 for 12th gen intel® core - pentium® gold and celeron® processors*
supports up to intel® 65w cpu
supports intel® turbo boost technology 2.0 and intel® turbo boost max technology 3.0**
* refer to www.asus.com for cpu support list.
** intel® turbo boost max technology 3.0 support depends on the cpu types.
chipset intel® h610 chipset
memory 2 x dimm - max. 64gb - ddr4 3200 - 3000 - 2933 - 2800 - 2666 - 2400 - 2133 non - ecc - un - buffered memory*
dual channel memory architecture
supports intel® extreme memory profile (xmp)
*actual memory data rate depends on the cpu types and dram modules - for more informatión refer to www.asus.com for memory support list.
graphics 1 x d - sub
1 x dvi - d
1 x hdmi® port**
* graphics specificatións may vary between cpu types. please refer to www.intel.com for any updates.
** supports 4k@60hz as specified in hdmi 2.1.
expansión slots intel® 12th gen processors
1 x pcie 4.0 x16 slot
intel® h610 chipset
1 x pcie 3.0 x1 slot
storage total supports 1 x m.2 slot and 4 x sata 6gb - s ports
intel® h610 chipset
m.2 slot (key m) - type 2242 - 2260 - 2280 (supports pcie 3.0 x4 mode)
4 x sata 6gb - s ports
ethernet 1 x realtek 1gb ethernet
usb rear usb (total 4 ports)
2 x usb 3.2 gen 1 ports (2 x type - a)
2 x usb 2.0 ports (2 x type - a)
front usb (total 6 ports)
1 x usb 3.2 gen 1 header supports additiónal 2 usb 3.2 gen 1 ports
2 x usb 2.0 headers support additiónal 4 usb 2.0 ports
audio pulgadas realtek 7.1 surround sound high definitión audio codec* - supports: jack - detectión - multi - streaming - front panel jack - retasking - supports up to 24 - bit - 192 khz playback pulgadas
audio features
- audio shielding
- premium audio capacitors
- dedicated audio pcb layers
* a chassis with an hd audio module in the front panel is required to support 7.1 surround sound audio output.
back panel i - o ports 2 x usb 3.2 gen 1 ports (2 x type - a)
2 x usb 2.0 ports (2 x type - a)
1 x d - sub port
1 x dvi - d port
1 x hdmi® port
1 x realtek 1gb ethernet port
3 x audio jacks
1 x ps - 2 keyboard (purple) port
1 x ps - 2 mouse (green) port
internal i - o connectors fan and cooling related
1 x 4 - pin cpu fan header
1 x 4 - pin chassis fan header
power related
1 x 24 - pin main power connector
1 x 4 - pin +12v power connector
storage related
1 x m.2 slot (key m)
4 x sata 6gb - s ports
usb
1 x usb 3.2 gen 1 header supports additiónal 2 usb 3.2 gen 1 ports
2 x usb 2.0 headers support additiónal 4 usb 2.0 ports
miscellaneous
1 x clear cmos header
1 x chassis intrusión header
1 x com port header
1 x front panel audio header (aafp)
1 x lpt header
1 x speaker header
1 x spi tpm header (14 - 1 pin)
1 x 10 - 1 pin system panel header
special features asus 5x protection iii
- digi+ vrm
- languard
- overvoltage protectión
- safeslot core
- stainless - steel back i - o
asus q - design
- q - dimm
- q - slot
asus thermal solutión
- aluminum heatsink design
software features asus exclusive software
armoury crate
ai suite 3
- performance and power saving utility
turbov evo
epu
digi+ vrm
asus cpu - z
nortón anti - virus software (free trial versión)
winrar
uefi bios
asus ez diy
- asus crashfree bios 3
- asus ez flash 3
- asus uefi bios ez mode
bios 128 mb flash rom - uefi ami bios
manageability wol by pme - pxe
accessories cables
2 x sata 6gb - s cables
miscellaneous
1 x i - o shield
1 x m.2 anchor
installatión media
1 x support dvd
documentatión
1 x user guide
operating system windows® 11 64 - bit - windows® 10 64 - bit
form factor matx form factor
8.9 inch x 7.6 inch (22.6 cm x 19.3 cm )
