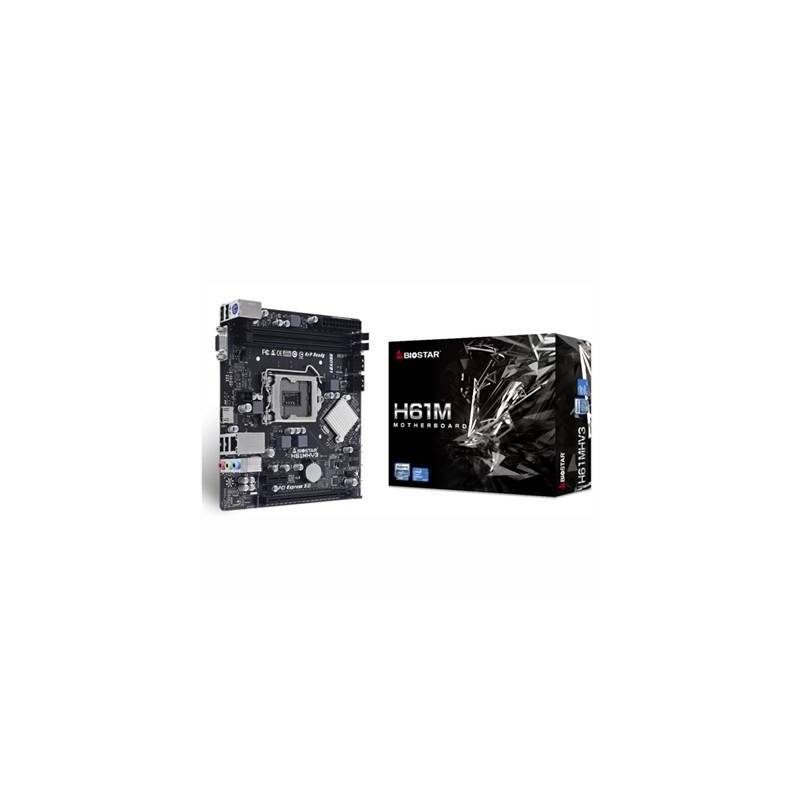

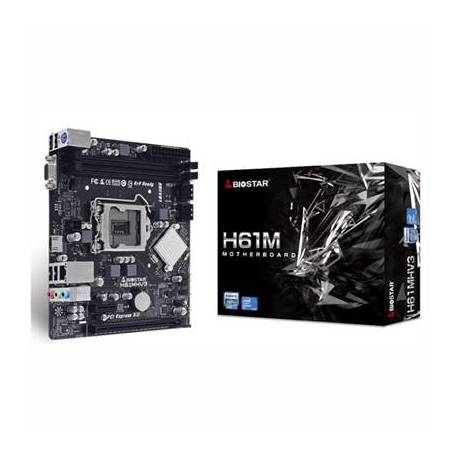

PLACA BASE BIOSTAR H61MHV3 MATX LGA1155

Marca biostar
modelo h61mhv3
plataforma - micro atx (17cm x 19.1cm)
chipset - intel h61
cpu - support intel core i7 - i5 - i3 processors and intel pentium processors - intel celeron processors in the lga1155 package
memoria - supports dual channel ddr3 1066 - 1333 - 1600
- 2 x ddr3 dimm memory slot - max. supports up to 16 gb memory
- each dimm supports non - ecc 512mb - 1 - 2 - 4 - 8 gb ddr3 module
ddr3 1600 memory module (depending on cpu)
slots expansión - 1 x pcie 2.0 x1
- 1 x pcie 3.0 x16 slot (x16 mode - depending on cpu)
puertos e - s -
conectores
internos
- 4 x sata ii (3gb - s)
- 2 x usb 2.0 headers (each header supports 2 usb 2.0 ports)
- 1 x 4 - pin power connector
- 1 x 24 - pin power connector
- 1 x cpu fan connector
- 1 x system fan connector
- 1 x front panel header
- 1 x front audio header
- 1 x internal stereo speaker header
- 1 x clear cmos header
- 1 x com port header
traseros
- 1 x ps - 2 keyboard - mouse
- 1 x vga port
- 1 x hdmi port
- 4 x usb 2.0 ports
- 1 x lan port
- 3 x audio jack
otras
características
almacenamiento
- 4 x sata ii (3gb - s)
lan
- realtek rtl8111h
- 10 - 100 - 1000 mb - s auto negotíatión - half - full duplex capability
audio
- alc897
- 7.1 channels - high definitión audio
usb
- 8 x usb 2.0 port (4 on rear i - os and 4 via internal headers)
so soportados
- supports windows 7 - 8 - 8.1 - 10
